TomorrowLAN Quad Stream Overlays

HTML/CSS browser source overlays for OBS Studio (1920x1080) featuring a 2x2 quad stream layout for the TomorrowLAN gaming event.

Assets

File	Description
bg.png	Static dark blue matrix background image
logo_noyear.png	TomorrowLAN logo (cyan/white)

---

Overlay Files

Standard Layout (935x515 panels)

Panels fill the full canvas with 15px edge padding and 20px gap.

Static background (bg.png)

Static	Glow	Breathe

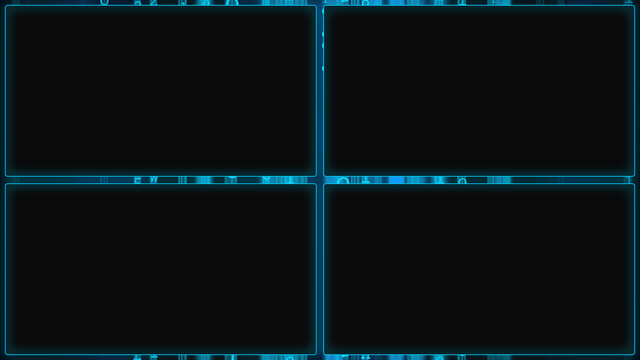

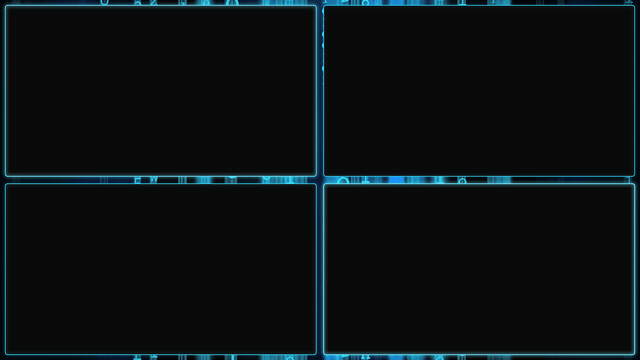

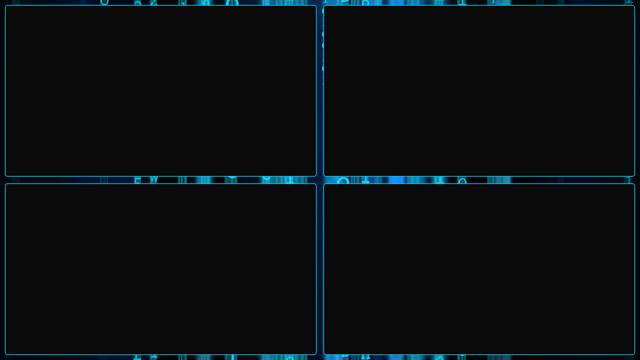

quad_static.html	quad_glow.html	quad_breathe.html

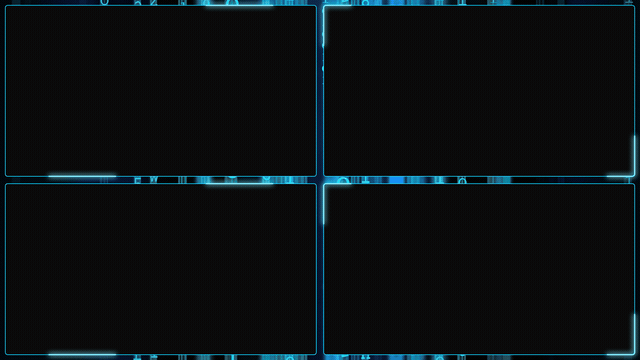

Bar	Dual Bars	Wave

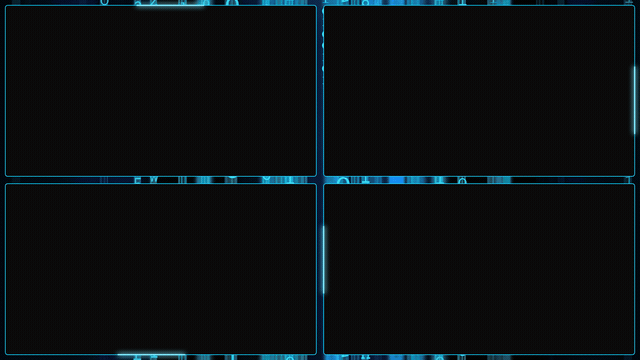

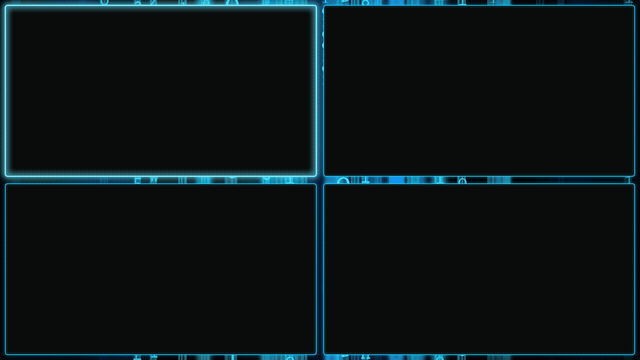

quad_bar.html	quad_dualbars.html	quad_wave.html

Animated matrix background

Static	Glow	Breathe

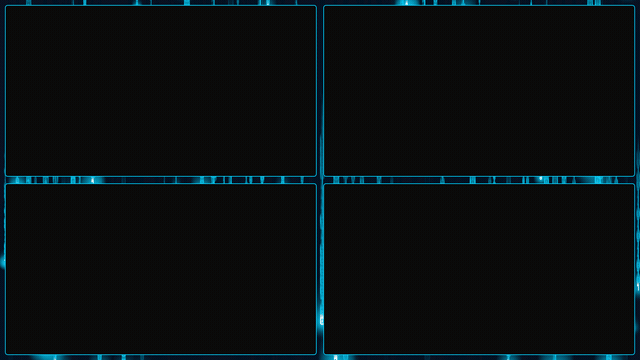

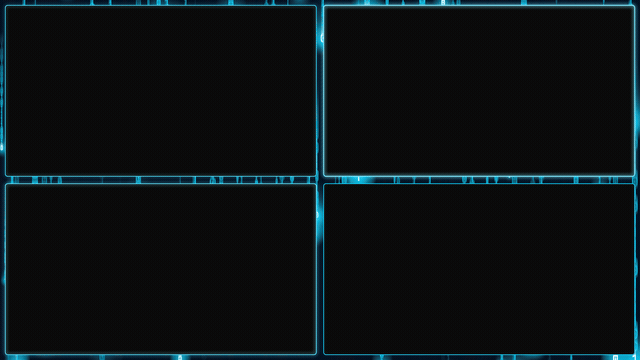

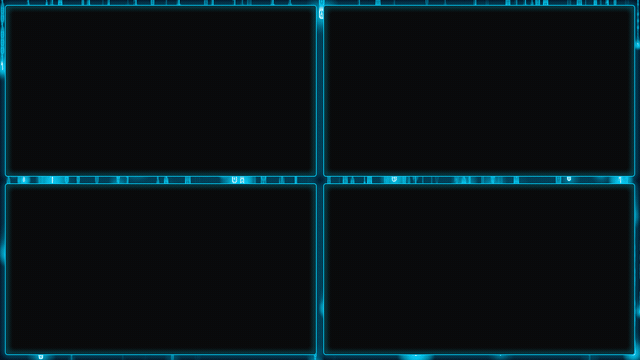

quad_matrix_static.html	quad_matrix_glow.html	quad_matrix_breathe.html

Bar	Dual Bars	Wave

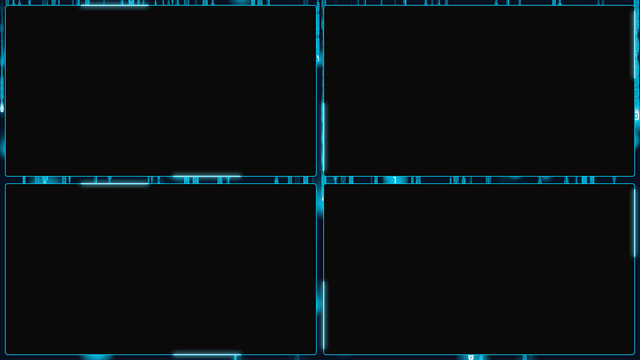

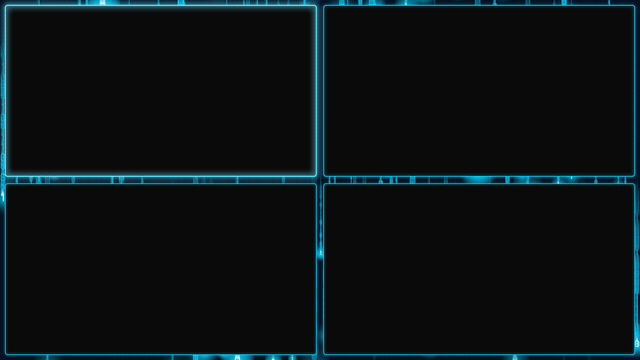

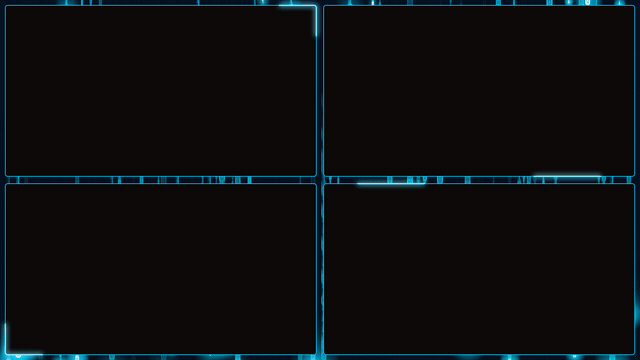

quad_matrix_bar.html	quad_matrix_dualbars.html	quad_matrix_wave.html

Gap Layout (780x439 panels, exact 16:9)

330px vertical gap between columns, 96px row gap. Panels are exactly 16:9.

Static background (bg.png)

Static	Glow	Breathe

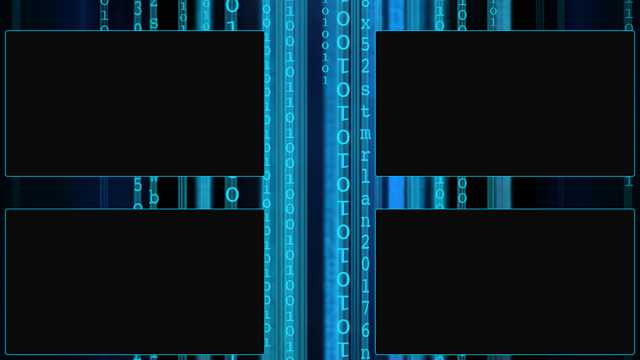

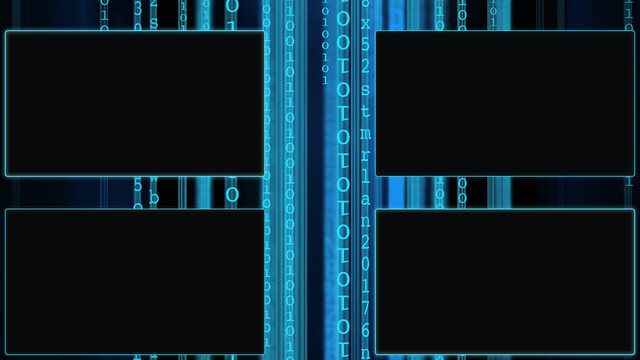

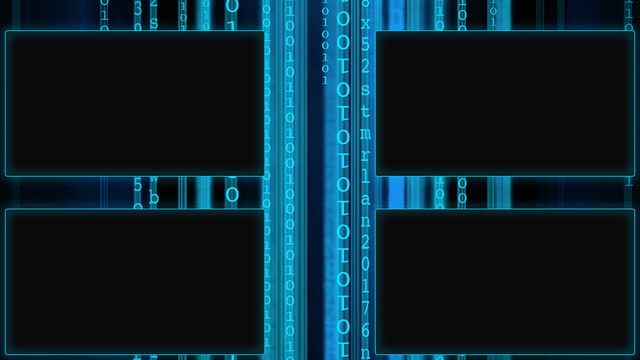

quad_gap_static.html	quad_gap_glow.html	quad_gap_breathe.html

Bar	Dual Bars	Wave

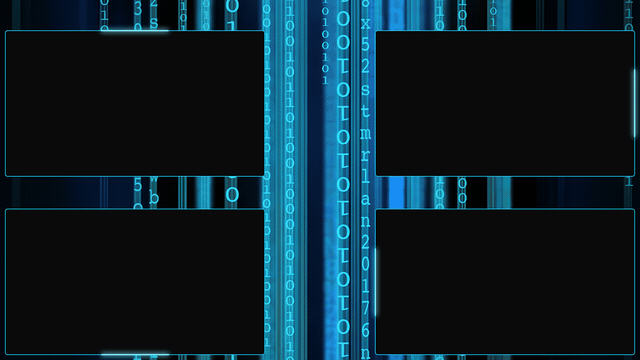

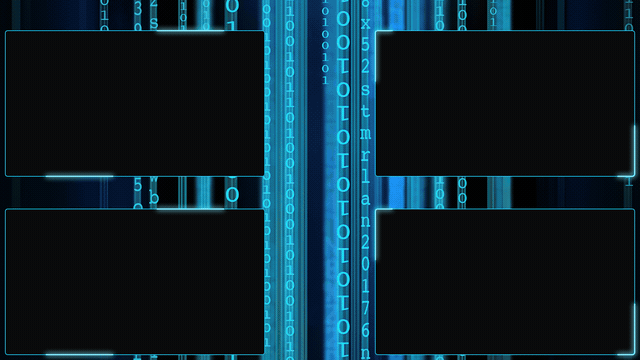

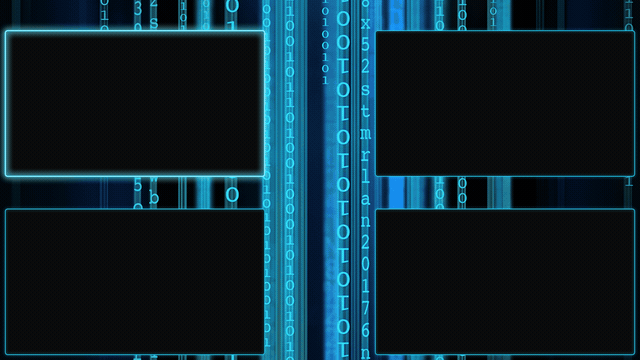

quad_gap_bar.html	quad_gap_dualbars.html	quad_gap_wave.html

Animated matrix background

Static	Glow	Breathe

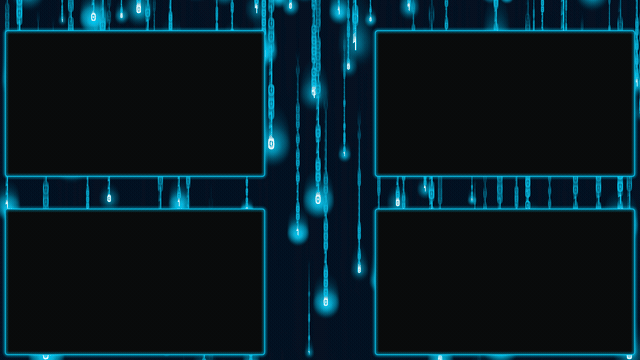

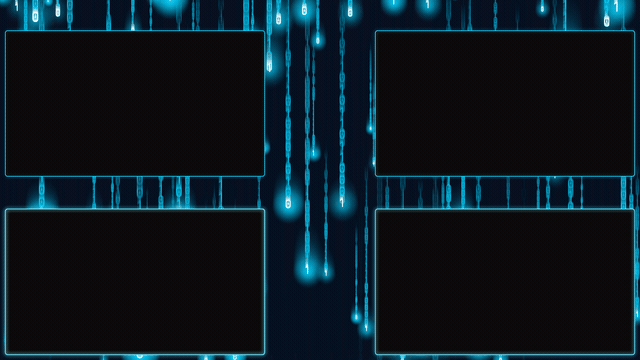

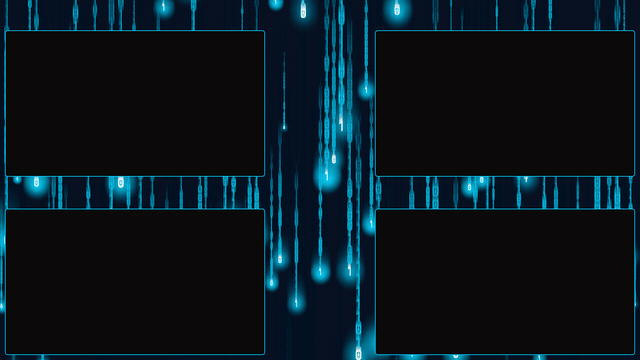

quad_gap_matrix_static.html	quad_gap_matrix_glow.html	quad_gap_matrix_breathe.html

Bar	Dual Bars	Wave

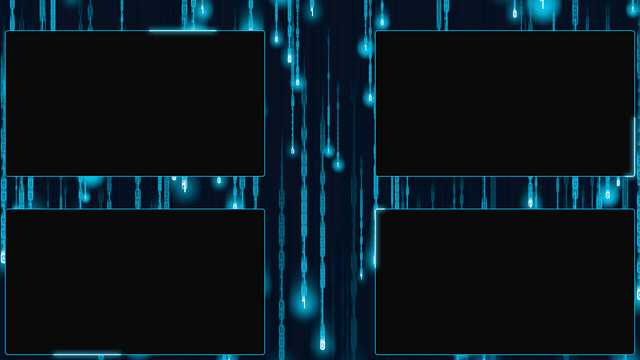

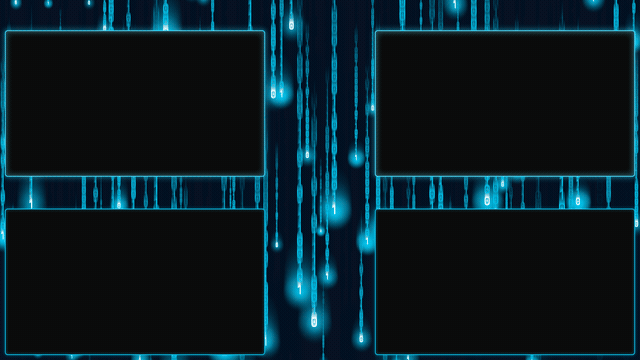

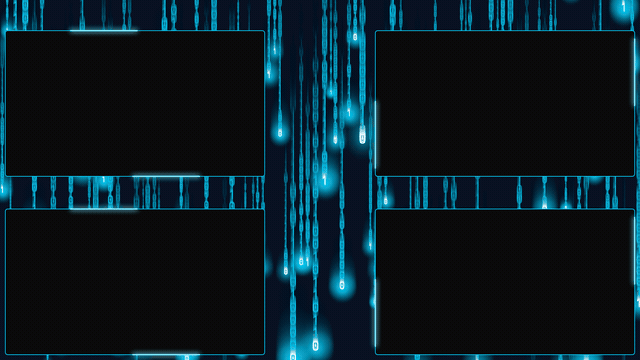

quad_gap_matrix_bar.html	quad_gap_matrix_dualbars.html	quad_gap_matrix_wave.html

Standalone

Preview	File

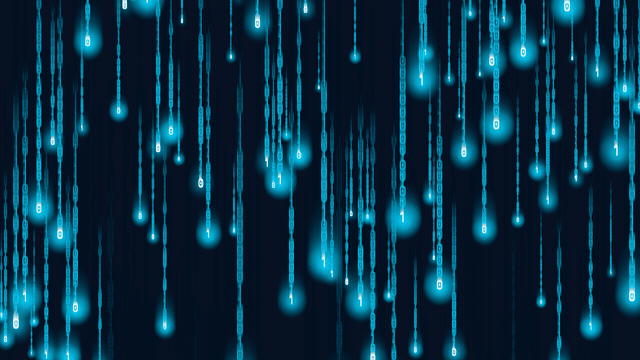

	bg_matrix.html — Full-screen animated matrix background (no panels)

---

OBS Setup

Adding the Overlay

1. Add a Browser Source in OBS
2. Check Local file and select the overlay HTML file
3. Set Width to 1920 and Height to 1080
4. If streaming at 60 FPS, set the browser source FPS to 60 (default is 30)
5. Layer game/camera sources below the overlay in the source list

Game Source Transform (Edit Transform - Ctrl+E)

Right-click a game source > Edit Transform (or Ctrl+E) and enter the exact values below.

For all sources, set:

• Positional Alignment: Top Left
• Bounding Box Type: Scale to inner bounds
• Alignment in Bounding Box: Center

---

Standard Layout — Edit Transform Values

Panel size: 935 x 515

Source	Pos X	Pos Y	Bounding Box W	Bounding Box H
Set 1 (top-left)	15	15	935	515
Set 2 (top-right)	970	15	935	515
Set 3 (bottom-left)	15	550	935	515
Set 4 (bottom-right)	970	550	935	515

These panels are slightly wider than 16:9 (935:515 = ~1.815:1 vs 1.778:1). A 1920x1080 game source with "Scale to inner bounds" will be cropped ~6px top and bottom — barely noticeable. Use "Scale to outer bounds" instead if you prefer thin black bars on the sides with no crop.

---

Gap Layout — Edit Transform Values

Panel size: 780 x 439 (exact 16:9)

Source	Pos X	Pos Y	Bounding Box W	Bounding Box H
Set 1 (top-left)	15	91	780	439
Set 2 (top-right)	1125	91	780	439
Set 3 (bottom-left)	15	626	780	439
Set 4 (bottom-right)	1125	626	780	439

These panels are exactly 16:9. A 1920x1080 game source fits perfectly — no cropping, no black bars.

---

Visual Layout Reference

Standard:

┌──────────────────────────────────────────────────┐
│                       15px                       │
│    ┌──────────────────┐  ┌──────────────────┐    │
│    │ Set 1   935x515  │  │ Set 2   935x515  │    │
│    │ (15, 15)         │  │ (970, 15)        │    │
│    └──────────────────┘  └──────────────────┘    │
│                     20px gap                     │
│    ┌──────────────────┐  ┌──────────────────┐    │
│    │ Set 3   935x515  │  │ Set 4   935x515  │    │
│    │ (15, 550)        │  │ (970, 550)       │    │
│    └──────────────────┘  └──────────────────┘    │
│                       15px                       │
└──────────────────────────────────────────────────┘

Gap:

┌──────────────────────────────────────────────────┐
│                       91px                       │
│   ┌────────────────┐        ┌────────────────┐   │
│   │ Set 1  780x439 │  330px │ Set 2  780x439 │   │
│   │ (15, 91)       │        │ (1125, 91)     │   │
│   └────────────────┘        └────────────────┘   │
│                       96px                       │
│   ┌────────────────┐        ┌────────────────┐   │
│   │ Set 3  780x439 │        │ Set 4  780x439 │   │
│   │ (15, 626)      │        │ (1125, 626)    │   │
│   └────────────────┘        └────────────────┘   │
│                       15px                       │
└──────────────────────────────────────────────────┘

---

Color Palette

Color	Hex	Usage
Cyan	#00d4ff	Panel borders, matrix rain trail
Light cyan	#80eaff	Animated glow highlights
Dark navy	#0a1628	Matrix background base
White	#ffffff	Matrix leading characters
